 POTENTIOSTAT GALVANOSTAT - OGF10A - FOR ELECTROCHEMICAL MEASUREMENTS


Description
origaFLEX concept
Technical specifications
Options
Leaflets
achat potentiostat simple

OGF10A

The OGF10A is a Potentiostat and Galvanostat measurement channel. Connected to a Power Supply (OGFPWR) or a Drive Unit (OGFDRV), the OGF10A is a trully independant 10A potentiostat.

Functions:

  • Potentiostat
  • Galvanostat
  • Temperature Measurement
  • Connector for Battery Holder
  • GND connexion

5 years warranty !

One potentiostat for TWO possibilities

The OrigaFlex range is a multi-channel system, modular Mutli-potentiostats, compact and unique on the market. You can start your system with a single channel and then extend it without limit with an ETHERNET connection.

Single-channel

Multi-channel

To operate, your single-channel potentiostat must be connected to a power supply or a "pilot" channel

or

With the OGFPWR, you can start with a single channel, with or without an impedance module.

With an OGFDRV, you can expend your single-channel in a multi-channel, with or without an impedance module.

TWO software depending on your use

Depending on your configuration, drive your device with OrigaMaster 5 in USB or with OrigaViewer in ETHERNET. Individually, each channel is controlled by USB, via OrigaMaster 5. Simultaneously, each channel is controlled by ETHERNET, via OrigaViewer.

PC software OrigaMaster 5

The single-channel system is controlled by USB via the OrigaMaster 5 software.

PC software OrigaViewer

The multi-channel system is controlled by ETHERNET via the OrigaViewer software.

A flexible system

Single or multi-channel, it is always possible to split your system to obtain many configuration. For example:

A multi-channel system => 1 multi-channel system+ 1 single-channel system

or

A multi-channel system => 1 multi-channel system + 1 single-channel + 1 other single-channel


Split a multi-channel system in two

A single-channel

OGFPWR + OGF01A + EIS

And

A multi-channel

OGFDRV + 4 x OGF01A

It is always possible to split but also to expend a single or multi-channel system. With an Ethernet switch, by connecting "pilote channel" OGFDRV, you can have a multi-channel system, multi-potentiostats without limit.

Extend a multi-channel system

The multi-channel system is drived by ETHERNET via OrigaViewer.

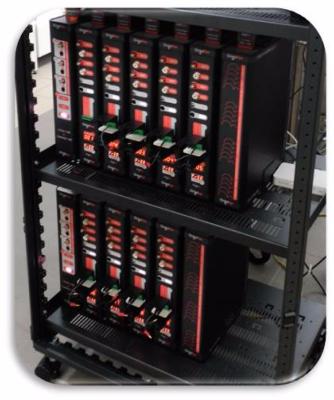

Example of multi-channel

OGFDRV + 5 x OGF500 + 1 x OGFEIS

And

OGFDRV + 4 x OGF01A + 1 x OGFEIS

Main specifications

Maximum Current

Current ranges

 Current resolution

 Current accuracy

 Compliance voltage

 Applied potential

 Potential resolution

 Potential accuracy

OrigaFlex - OGF10A

 ±10 A

 ±100 µA to ±10 A

 0.003 %. Best: 3 nA

 < 0.1 % Full Scale Range

 ±20 V

 ±15 V

 0.003 %

 < 0.1 % Full Scale Range

Compatible and optional modules

OGFEIS

Impedance module: 10 µHz - 5 MHz

OrigaTrod Kit

OrigaTrod: Rotating Disk Electrode

OrigaBox: Speed Controller

from 100 to 10,000 Rpm

OrigaMµ

Low current potentiostat

Current ranges:

±1 pA, ±10 pA, ±100 pA, ±1 nA and ±10 nA.

Best current resolution:

30 aA

Battery holder

Coin Cells Holder

Temperature sensor included

Thickness: 3,2 mm maximum

Diameter: 20 mm maximum

Other complementary accessories

Electrodes

Tips

Cables

Glass Cell

List of leaflets

OGF10A

ORIGAFLEX

CATALOG

PRODUCT

CATALOG

ELECTRODES

CATALOG


Need more informations ? Contact us at +33 9 54 17 56 03  or fill out our form
